Description :

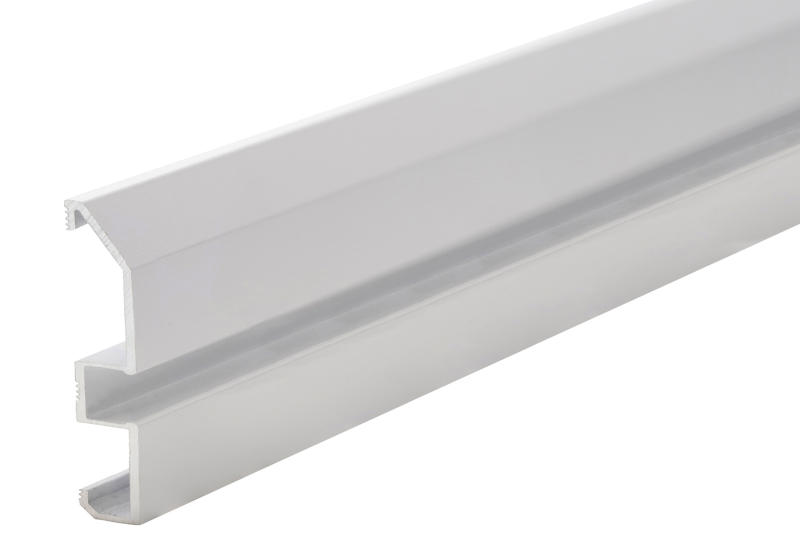

- Rail en aluminium anodisé gris

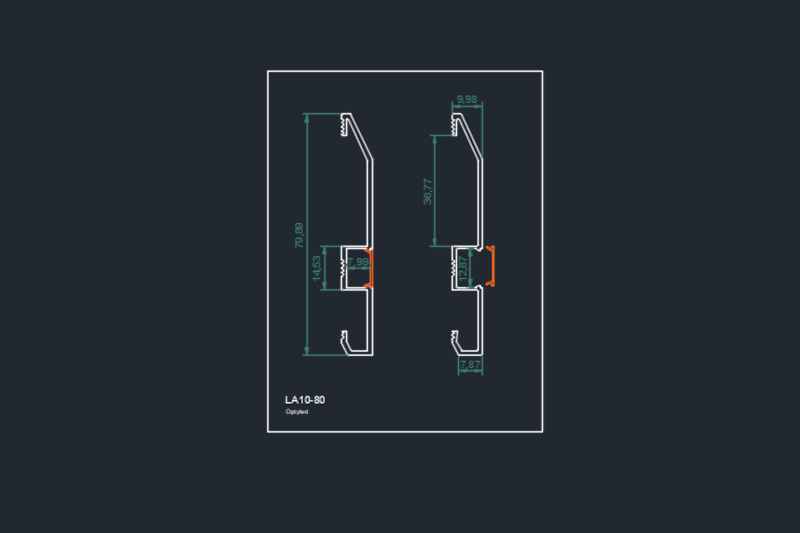

- Dimension 15 x 30 mm
- Vasque en Polycarbonate opale en option
- Fixation par système équerre, suspension
- Longueur maximale 6m (sur demande)
- Position du ruban basse ou intermédiaire
- Choisissez les LED de type A ou S dans le tableau en annexe
- Alimentation 24V , variation DMX, DALI, 1-10V
- IP23, IP54, IP67, CLIII
- Températures de fonctionnement -20°C ; +55°C
- Puissance maximale : 9.6W /m à 25°C position intermédiaire
- Puissance maximale : 20W /m à 25°C position basse
- Poids : 308 g / m
Caractèristiques :
Applications :
Intérieur
Extérieur
Montage :
Sol
Murs
Fixation :
Saillie
Variation possible :
1-10V
DMX
DALI
Taux de transmission (%) :
50
Angle (°) :
180
Garantie (an(s)) :
2
5
IRC (>=) :
85
90
Type :
Opale
Tension de fonctionnement (V) :
12
24
Variation possible :
1-10V
DMX
DALI
Largeur (mm) :
10
Hauteur (mm) :
80
Forme :
Rectangulaire
Alimentation en courant :
non
Température de fonctionnement minimale (°C) :
-20
Température de fonctionnement maximale (°C) :
55
LB :
L70B50
Longueur de câble :
2
Fiche étanche :
Sur demande
Longueur maximale (mm) :
2000
Matière :
Aluminium
Couleur :
Blanc
Puissance maximale /m (W/m) :
30
